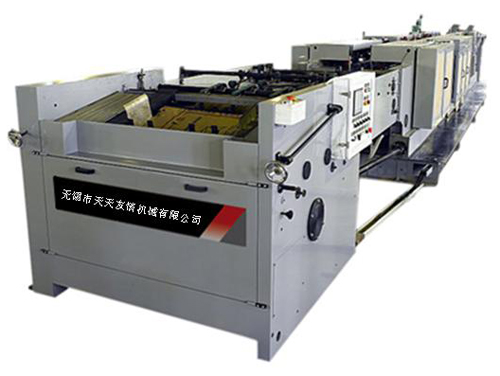

Fully automatic multiply kraft paper bag bottom machine
产品参数

Equipment design and process description:
The high speed automatic paper pasted block bottom square bag making unit is a high-tech automated production line. Mainly consists of ZT500 paper bag tube making machine and HD300 paper pasted block bottom square bag making machine. It adopts the technique integration of photo-electricity, mechanical, electrical and pneumatics.
The unit was completely made of more than 20 technological process and which was controlled and completed by the Photoelectric PLC automatic control system procedures.
It is high speed automatic paper pasted block bottom square bag production line with currently the highest domestic design automation and the best secure operation. The lubrication system was a automatic self-lubrication and it performance with high stability and lower noise. Workers are capable to adjust and drive this machine easily.

paper pasted block bottom square bag making unit process
Rotary High speed vacuum feeder, Perforating, pressure on the bag with bottom forming, Main sack delivery, Opening the sacks bottom, sticking the valve strip, Auto gluing, forming bottom with pasting, bag bottom turnover, Counting, Platform for storing.



HD-300 Paper Pasted Block Bottom Square Bag Making Unit Main Parameters:

Bag tube length :               520~92 mm

Bag length :                   390mm~710mm

Net bag length :               300~540mm

Bag width :                     400~500mm

Bottom pasting width :         90~170mm

Bottom width:                220~380mm

Bottom stick width:              60% Bottom pasting width HD

Valve strip(L*W)                150~240*90~170mm

Maximum production efficiency:    100pcs/min normal capacity

(it was relevant to the craft paper quality, bag layers and proficiency of the operator)

Total machine dimension:          20.5*1.7*1.8m(L*W*H)

Total weight:                     19Ton

Total power:                      17kw

Standard configuration :

Rotary feeding device:                           one set

Trimming & Perforation marking press device:     one set

Bottom opening device:                           one set

Glue and valve sticking of strip device:         one set

Bottom forming device:                           one set

Turning up of the sack bottom device:            one set

Delivery section device:                         one set

Piler up device:                                 one set

Platform for storing :                           one set

Electric control system:                         one set

Vacuum pump:                                     one set
