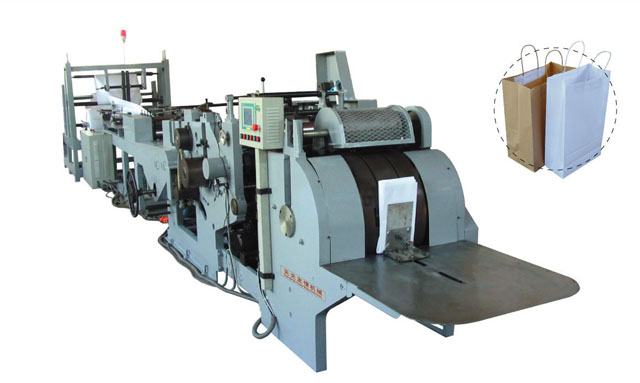

Introduction:

We successfully developed the square bottom type of paper making machine with roll paper or printed roll paper, sheet feeding as optional. This machine features full automatic integrating paper suction, gluing, and impressing, bottom-pasting and bag formation. All the operation procedures are controlled by PLC, saving labor power. It is suitable for making shopping bag, hand bag, packing garment, food and so on.

Specifications:

1.Paper width: 550-950mm
2.Paper weight: 70-140g/m2
3.Bag length: 300-550mm
4.Bag width: 150-330mm
5.Bag bottom width: 60-130mm
6.Output: 40-80pcs/min
7.Power consumption:12Kw
8.Total weight:7000Kg
9.Machine dimensions: 11000 x 1500 x 1700mm
